Complete reference for all properties in the TerrainGridSystem inspector. Properties are organized by section as they appear in the Unity Inspector.

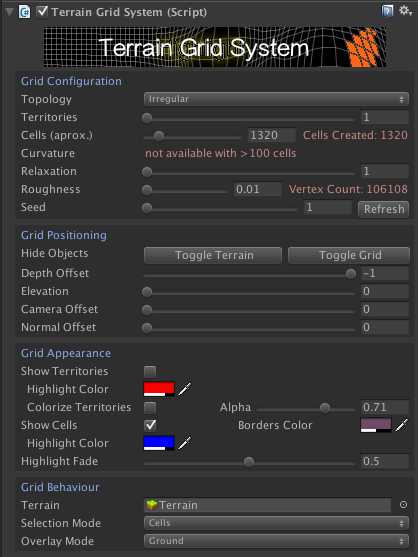

Grid Configuration

Property	Description
Terrain	The terrain or root GameObject for the grid. Works with Unity Terrain or any mesh.
Topology	Grid shape: Irregular (Voronoi), Box, or Hexagonal.
Rows / Columns	Grid dimensions (box and hexagonal topologies).
Num Cells	Number of cells (irregular topology only).
Territories	Number of territories. Each territory contains one or more cells. Adding territories increases computation time with high cell counts.
Regular Hexes	Preserves correct hexagon aspect ratio regardless of grid scaling.
Even Layout	Toggles the up/down shift of the first hexagon row.
Curvature	Applies curvature to grids with 100 or fewer cells. Triples segment count.
Relaxation	Makes Voronoi cells more uniform. Higher values = more iterations = longer generation time.
Roughness	Controls how closely the grid follows the terrain surface. Keep low for smooth terrains; increase for flat terrains to reduce vertex count.
Seed	Randomization seed for reproducible cell layouts.
Flat Cells	When enabled, cells ignore terrain slope and remain horizontal.
Max Slope	Maximum terrain slope for cell visibility (1 = no filtering). Reduce to hide cells on steep surfaces.
Max Height Difference	Maximum vertex height difference within a cell. Cells exceeding this value are hidden.
Min / Max Altitude	Altitude range for cell visibility. Useful for hiding cells under water.
Mask	Texture controlling cell visibility via alpha channel (alpha = 0 hides the cell). Hidden cells are excluded from highlighting and pathfinding.
Territories Texture	Color texture defining territory shapes. Each unique color creates a territory. Use solid colors only (no gradients).

Grid Positioning

Property	Description
Mesh Pivot	Local center offset for custom meshes (not Unity Terrain). Adjust if the grid appears off-center.
Grid Center / Scale	Position and size of the grid on the terrain surface. Use to show a partial grid around a specific area.
Depth Offset	Z-buffer offset for highlight surfaces (Colored Depth Offset) and grid mesh (Mesh Depth Offset).
Elevation / Elevation Base	Combined Y-axis displacement above the terrain.
Min Elevation Multiplier	Multiplier for the small Y-offset between grid layers. Reduce for very large terrain scales.
Camera Offset	Dynamic displacement toward the camera position.
Normal Offset	Per-vertex displacement along terrain normals. Expensive — use only when needed.

Grid Appearance

Performance: If you do not use territories, ensure all territory-related options (Show Territories, Colorize Territories, highlight mode = Territory) are disabled to avoid unnecessary mesh generation.

Property	Description
Show Cells	Toggle cell border visibility.
Cell Border Color	Color of cell borders.
Show Territories	Toggle territory border visibility. Enables territory mesh generation.
Colorize Territories	Fill territories with colors. Also triggers territory mesh generation.

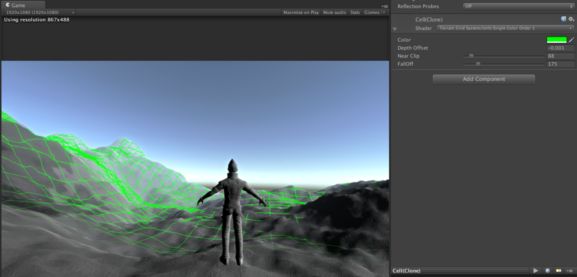

Near Clip Fade / FallOff	Fade grid lines when the camera is very close (useful for FPS cameras).
Cell Fill Padding	Enlarge or shrink the colored/textured surface area of cells.

Grid Interaction

Property	Description
Highlight Mode	Interactive selection: None, Cells, or Territories.
Overlay Mode	Ground (surfaces appear below scene content) or Overlay (surfaces render on top; faster but less realistic).
Respect Other UI	When enabled, grid interaction is suppressed while the pointer is over a uGUI Canvas element.

Path Finding

Property	Description

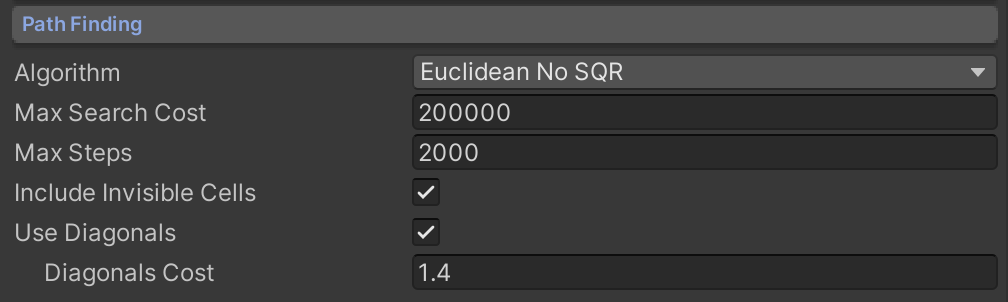

Algorithm	Heuristic for A* pathfinding: Euclidean — optimal paths based on straight-line distance Euclidean Non SQR — faster variant without square root Manhattan — grid-aligned paths MaxDXDY — more natural-looking paths Diagonal Shortcut — favors diagonal movement
Max Search Cost	Maximum total path cost. 0 = unlimited.
Use Diagonals	Allow diagonal movement between cells.
Diagonals Cost	Cost multiplier for diagonal steps.

Optimization: The pathfinding algorithm uses a faster variant when the column count is a power of 2 (4, 8, 16, 32, 64, 128, 256...).

Four methods to control path traversal:

Method	Purpose
`CellSetCanCross`	Block or unblock a cell for pathfinding.
`CellSetGroup`	Assign a cell to a group. Filter allowed groups in `FindPath`.
`CellSetCrossCost`	Set a custom cost for entering a cell.
`CellSetSideCrossCost`	Set a custom cost for a specific cell edge, with optional direction awareness.

See demo scene 12 for a pathfinding example. See Scripting Support for the full API.

Grid Editor

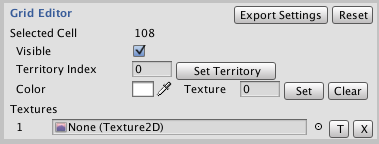

The Grid Editor section lets you customize individual cells in the Unity Editor.

Feature	Description
Cell Selection	With the Scene View active, click any cell to select it and edit its properties.
Texture Painting	Load textures into the array, click the T button to enter paint mode, then click cells to apply textures.
Export Settings	Creates a `TGS Config` component that stores all cell settings for later loading.
Reset	Clears all per-cell customizations and restores defaults.
Multiple Configurations	Add multiple `TGS Config` components. Enable one or call `LoadConfiguration()` to switch.

Important: Ensure Gizmos are enabled in the Scene View toolbar for cell selection to work.
